APT Mini M1
Key Product Features
Converts constant current driver into multi-channel constant current driver with up to 3 controlled output channels
Correlated Color Temperature (CCT) can be calibrated precisely, independent of intensity
Select tunable white modules to achieve desired spectra mix & lumen output within a calibrated linear or downlight system
APT Programmer enables configuration changes including CCT range, CCT mapping and control mode selection
Product Information
Control Mode
0-10V
Intensity Level
Programmable
DIP Switch
Form Factor
Linear
8mm height
- Ultra Compact
Product Specs
- Up to 3 output channels
Product Chart
| APT Controller | Technology | # of Output Channels | Control Mode | Max Wattage | Max Input Voltage | Max Channel Current | Max Total Current |
| APT-CC-VS-M1-xxxTW | Tunable White | 2 | 0-10V | 100W | 60V | 4160 mA | 4160 mA |
| APT-CC-VS-M1-xxxDW | Dim-to-Warm | 2 | Intensity Level | 100W | 60V | 4160 mA | 4160 mA |
| APT-CC-VS-M1-xxxSW | Selectable White | 2 | Programmable or DIP Switch | 100W | 60V | 4160 mA | 4160 mA |
| APT-CC3-VS-M1-xxxTW | Tunable White | 3 | 0-10V | 100W | 60V | 4160 mA | 4160 mA |
| APT-CC3-VS-M1-xxxDW | Dim-to-Warm | 3 | Intensity Level | 100W | 60V | 4160 mA | 4160 mA |
| APT-CC3-VS-M1-xxxSW | Selectable White | 3 | Programmable or DIP Switch | 100W | 60V | 4160 mA | 4160 mA |
Programmable Feature Chart
The following features are enabled using Arkalumen’s APT Programmer
| APT Controller | Technology | LED Module Selection |
CCT Range | CCT Level | Linear or Logarithmic Mapping | 0-10 Trim Adjust | DIP Switch Usage |
| APT-CC-VS-M1-xxxxTW | Tunable White | ||||||
| APT-CC-VS-M1-xxxxDW | Dim-to-Warm | ||||||
| APT-CC-VS-M1-xxxxSW | Selectable White | ||||||
| APT-CC3-VS-M1-xxxxTW | Tunable White | ||||||
| APT-CC3-VS-M1-xxxxDW | Dim-to-Warm |
|
|||||
| APT-CC3-VS-M1-xxxxSW | Selectable White |
|

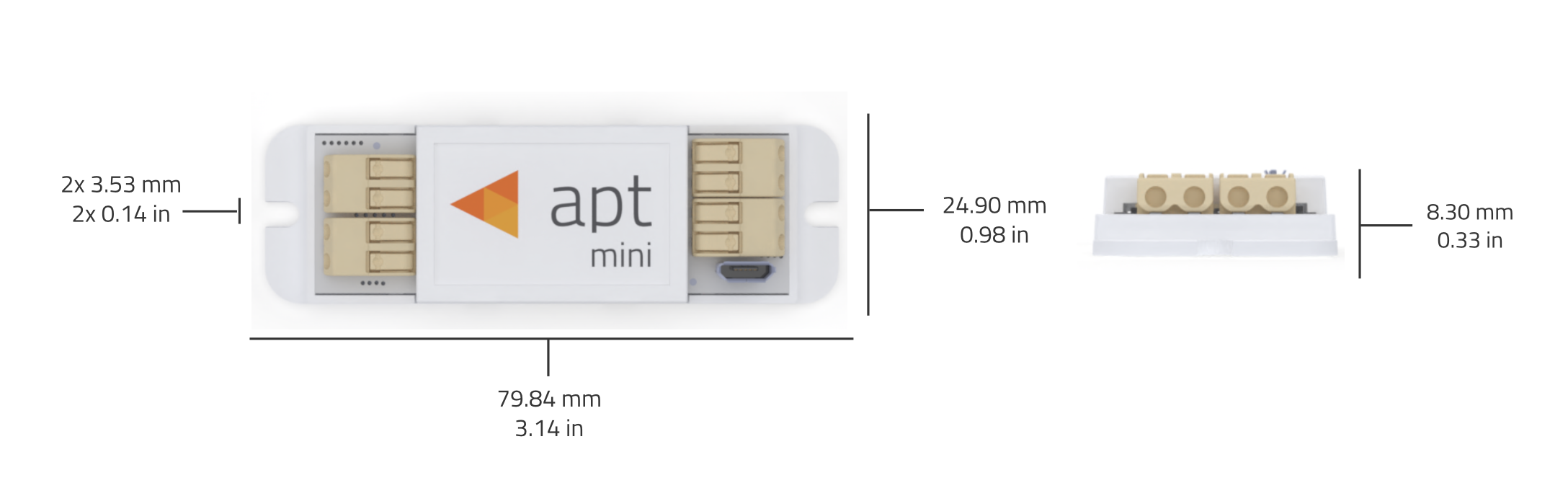

Mechanical Diagram
