ARKALUMEN APT-CC
Key Product Features
Enables tunable white feature in constant current drivers
Independent CCT and intensity control
No auxiliary power required
No perceivable flicker
Programmable dim-to-off, CCT range, CCT mapping
Simple Tunable White
APT-CC controllers split the current received from a single channel constant current driver into two channels. The mix of the two channels determines the perceived color temperature. Perfect for tunable white or dim-to-warm applications.
Product Information
Control Protocol
0-10V
DMX/RDM
Silvair BLE
Casambi BLE
Form Factor
Linear
Square
Product Specs
2 channels
100W Max Power
10-60V
Key Markets
Commercial
Education
Healthcare
Product Chart
| APT Controller | Input Driver | # of Output Channels | Control Protocol | Form Factor | Max Wattage | Max Voltage | Max Channel Current | Max Total Current |
| APT-CC-VA-LN | CC | 2 | DMX/RDM | Linear | 100W | 60V | 4,040 mA | 4,100 mA |
| APT-CC-VC-LN | CC | 2 | 0-10V (Isolated) | Linear | 100W | 60V | 4,060 mA | 4,100 mA |
| APT-CC-VD-LN | CC | 2 | 0-10V (Non-Isolated) |
Linear | 100W | 60V | 4,080 mA | 4,100 mA |
| APT-CC-VWC-LN Casambi | CC | 2 | BLE | Linear | 100W | 60V | 4,088 mA | 4,100 mA |
| APT-CC-VWS-LN Silvair | CC | 2 | BLE | Linear | 100W | 60V | 4,088 mA | 4,100 mA |
| APT-CC-VA-SQ | CC | 2 | DMX/RDM | Square | 100W | 60V | 4,040 mA | 4,100 mA |
| APT-CC-VC-SQ | CC | 2 | 0-10V | Square | 100W | 60V | 4,060 mA | 4,100 mA |
| APT-CC-VWC-SQ Casambi | CC | 2 | BLE | Square | 100W | 60V | 4,088 mA | 4,100 mA |
| APT-CC-VWS-SQ Silvair | CC | 2 | BLE | Square | 100W | 60V | 4,088 mA | 4,100 mA |
Programmable Feature Chart
The following features are enabled using Arkalumen’s APT Programmer
| APT Controller | Control Protocol | Retrieve Settings | Dim-to-Warm | Dim-to-Off | Fade-to-Off | Set Max Current | CCT Ranges | CCT Mapping | Intensity Mapping |
| APT-CC-VA-LN | DMX/RDM | ||||||||
| APT-CC-VC-LN | 0-10V (Isolated) | * | |||||||
| APT-CC-VD-LN | 0-10V (Non-Isolated) | * | |||||||
| APT-CC-VWC-LN Casambi | BLE | ||||||||
| APT-CC-VWS-LN Silvair | BLE | ||||||||
| APT-CC-VA-SQ | DMX/RDM | ||||||||
| APT-CC-VC-SQ | 0-10V | * | |||||||
| APT-CC-VWC-SQ Casambi | BLE | ||||||||
| APT-CC-VWS-SQ Silvair | BLE |
*Use of Dim-to-Off driver acceptable
Mechanical Diagram

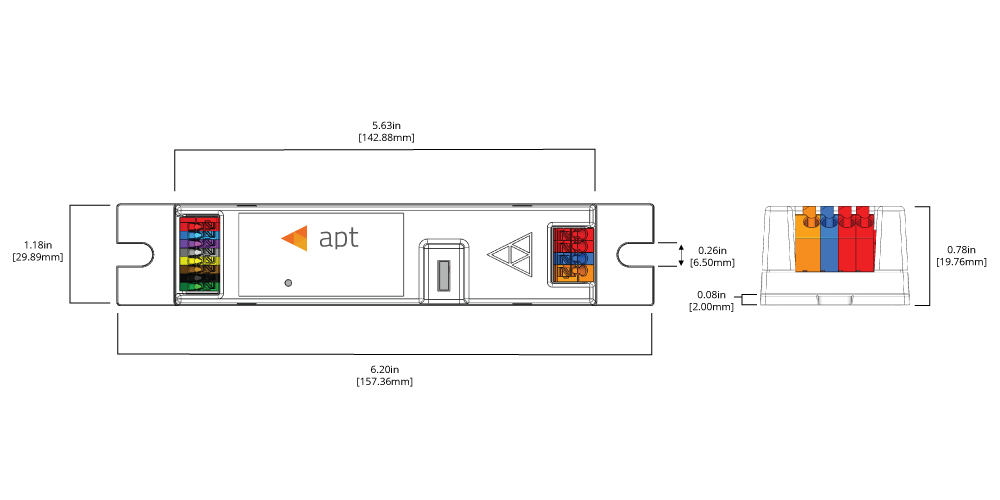

Linear

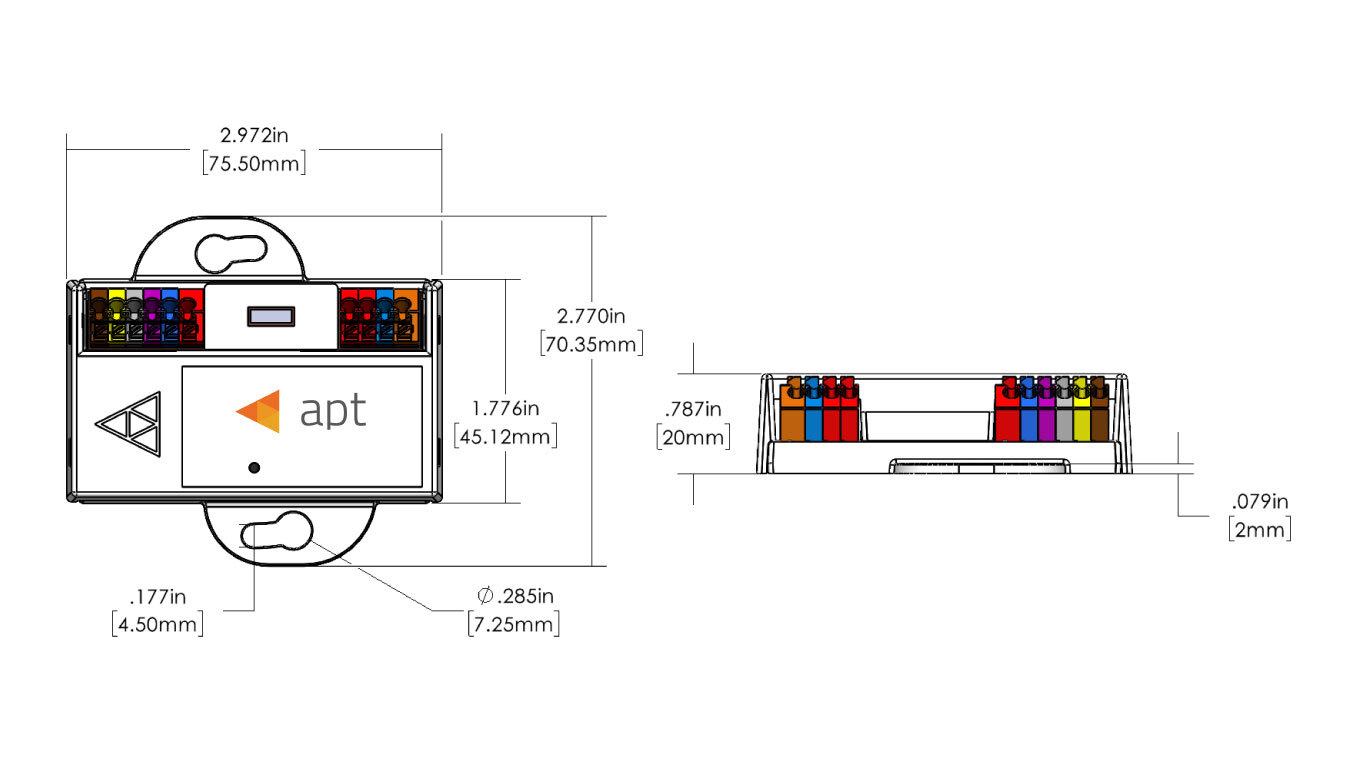

Square
