ARKALUMEN APT-CVO
Key Product Features
Independent control of up to 4 constant voltage LED channels with a standard CV driver
No auxiliary power required
No perceivable flicker
Programmable dim-to-off, CCT range, CCT mapping, intensity mapping
Multi-Channel Constant Voltage Control
APT-CVO controllers match perfectly with multi-channel LED rolls that require constant voltage inputs. The controllers enable independent control over up to 4 constant voltage LED channels using a standard constant voltage driver and can be configured to control overall intensity and CCT. The 2 channel version is ideal for tunable white applications and the 4 channel version is designed to enable an intelligent RGBW system.
Product Information
Control Protocol
0-10V
DMX/RDM
Casambi BLE
Silvair BLE
Form Factor
Linear
Product Specs
Up to 4 channels
100W Max Power
12-60V
Key Markets
Architectural
Commercial
Education
Product Chart
| APT Controller | Input Driver | # of Output Channels | Control Protocol | Form Factor | Max Wattage | Max Voltage | Max Channel Current | Max Total Current |

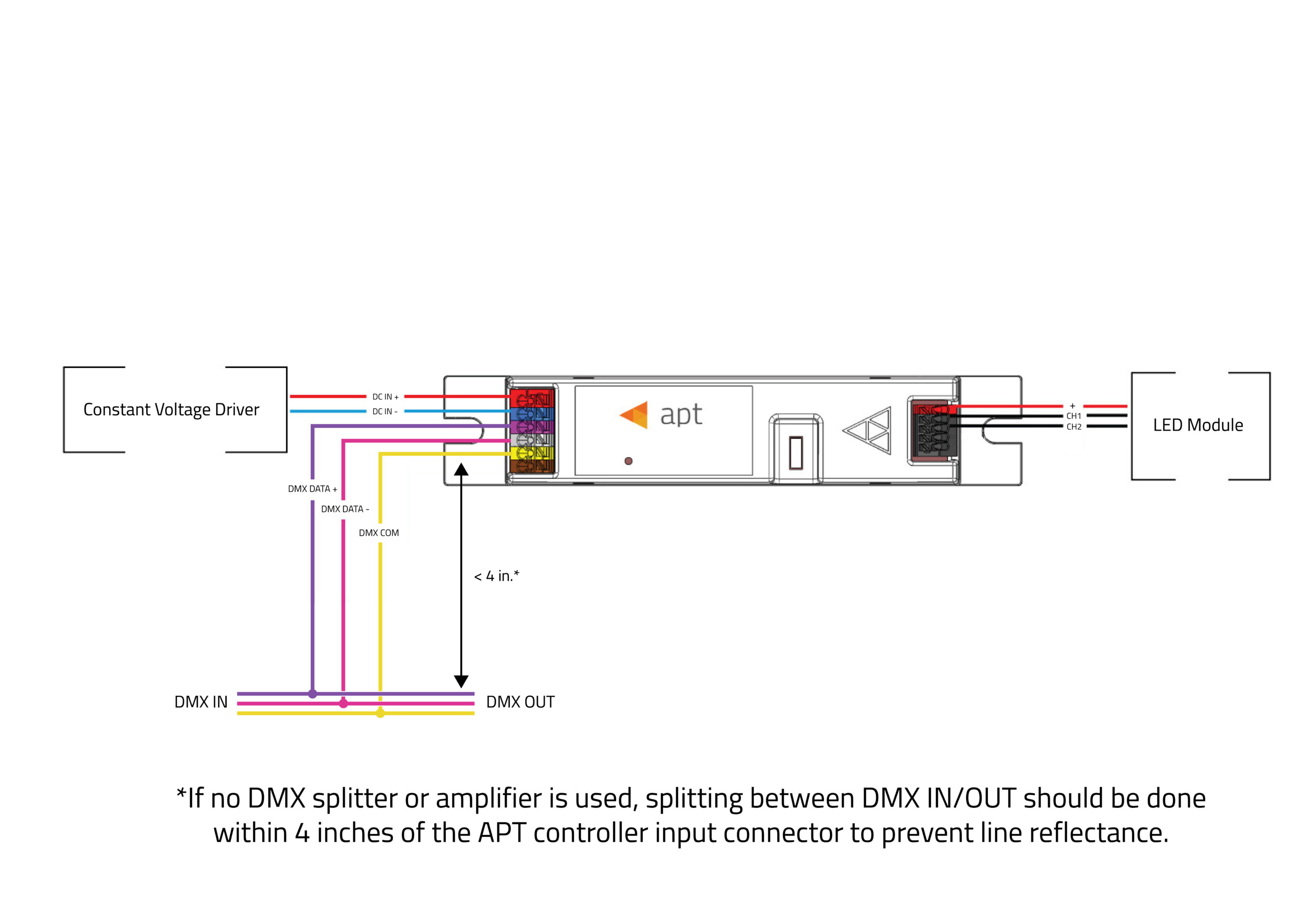

| APT-CV2-VA-LN-CVO | CV | 2 | DMX/RDM | Linear | 100W | 60V | 4,035 mA | 4,100 mA |

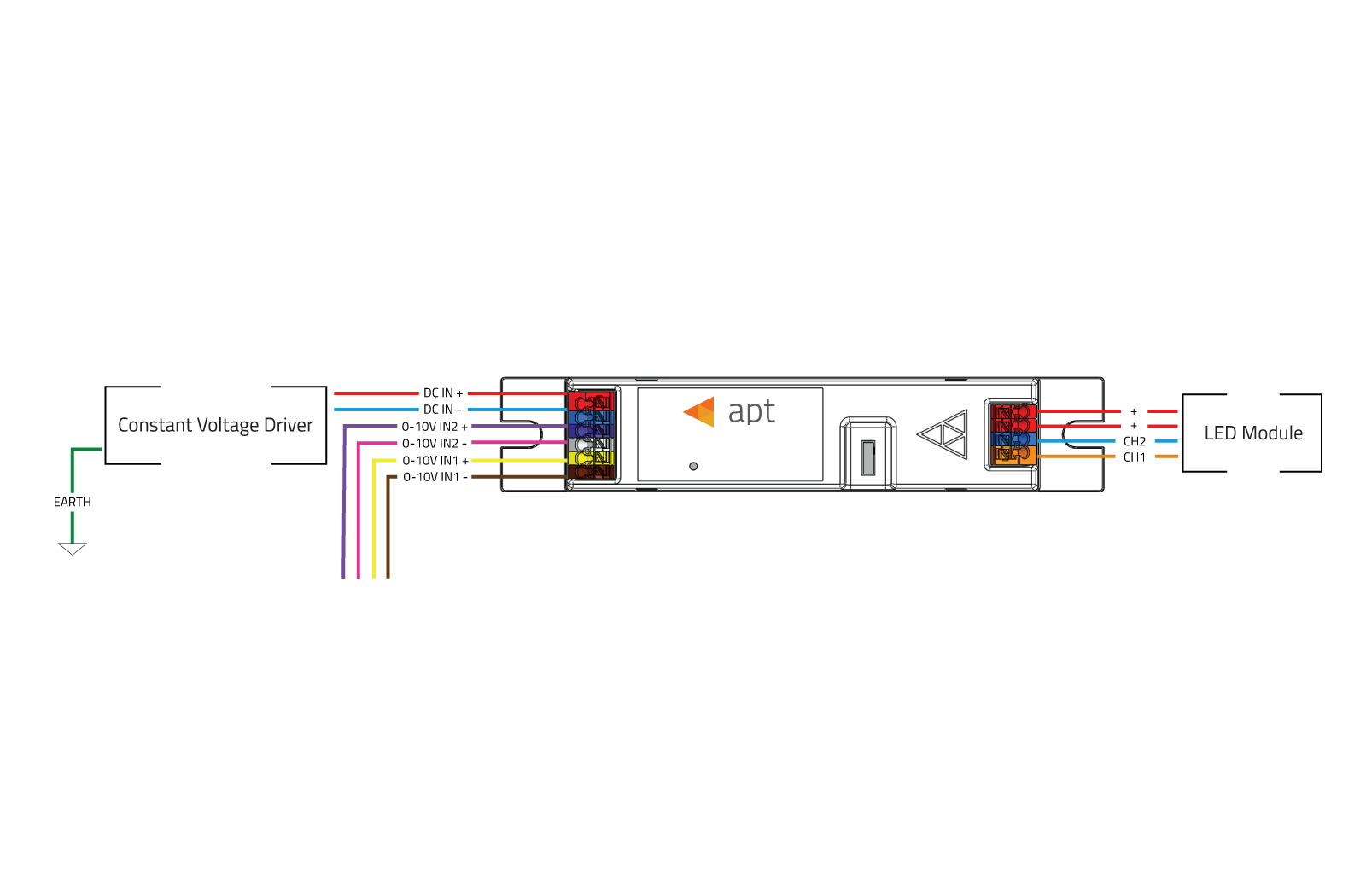

| APT-CV2-VC-LN-CVO | CV | 2 | 0-10V | Linear | 100W | 60V | 4,025 mA | 4,100 mA |
| APT-CV2-VWC-LN-CVO Casambi | CV | 2 | BLE | Linear | 100W | 60V | 4,058 mA | 4,100 mA |
| APT-CV2-VWS-LN-CVO Silvair | CV | 2 | BLE | Linear | 100W | 60V | 4,058 mA | 4,100 mA |

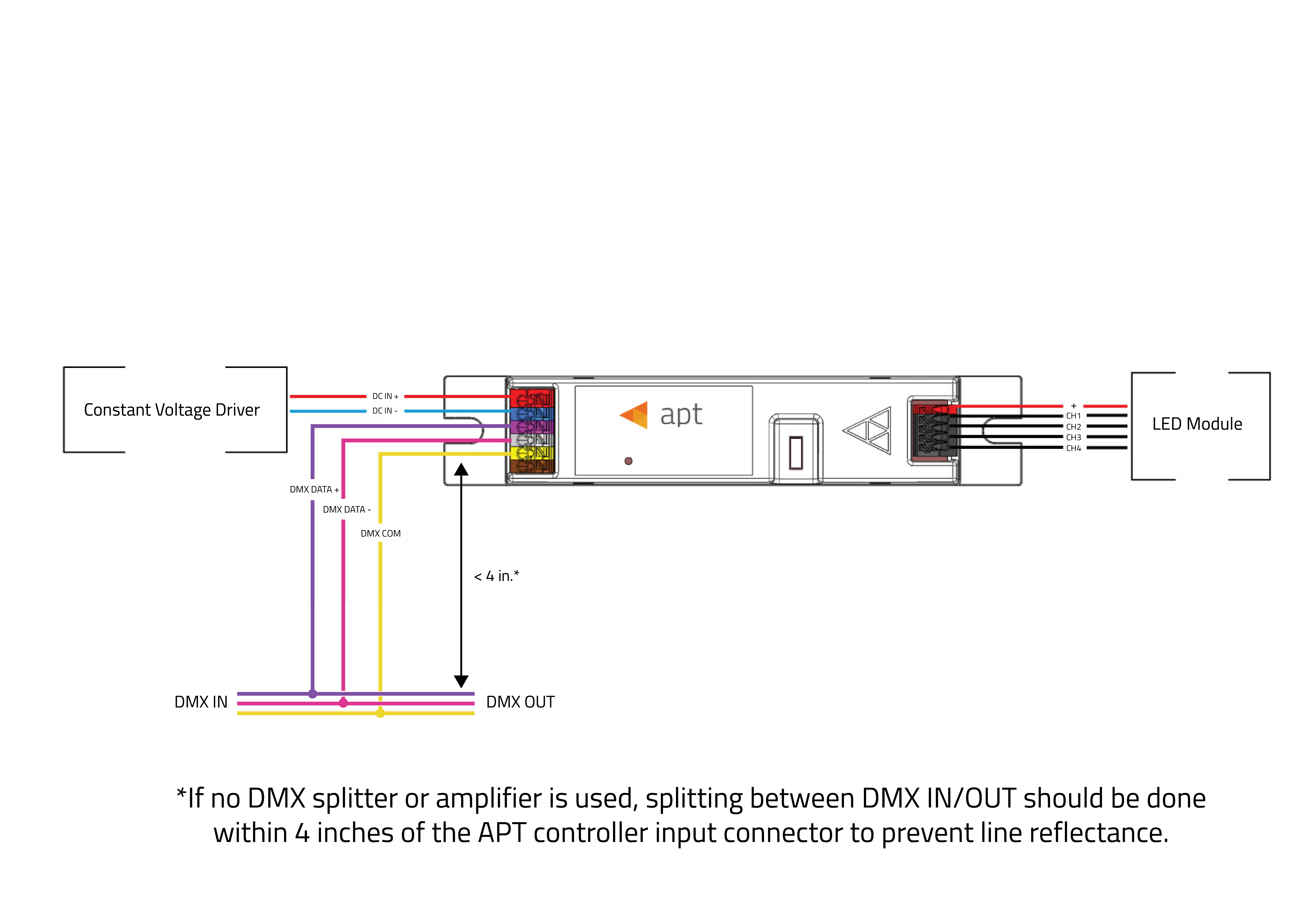

| APT-CV4-VA-LN-CVO | CV | 4 | DMX/RDM | Linear | 100W | 60V | 4,035 mA | 4,100 mA |

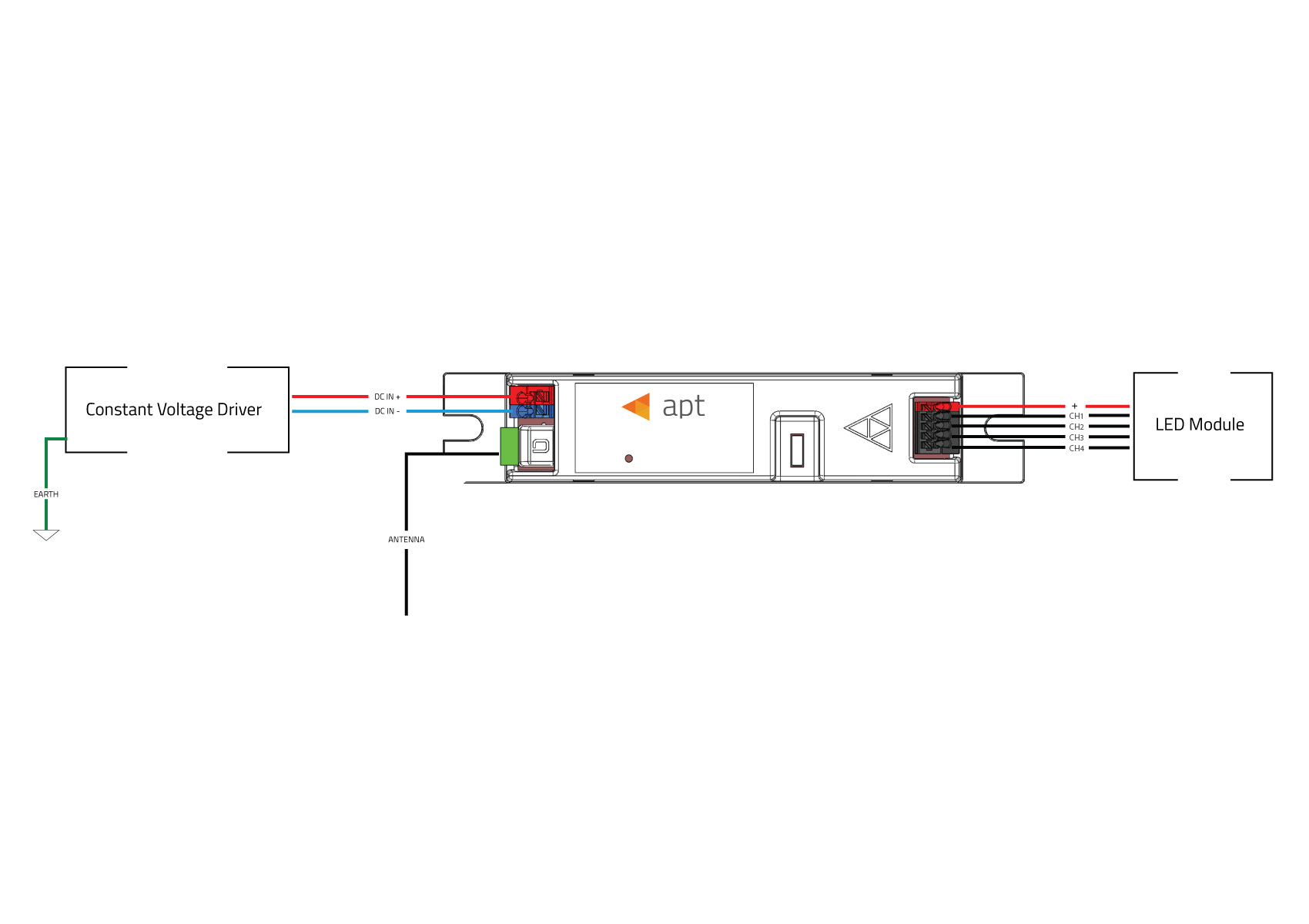

| APT-CV4-VWC-LN-CVO Casambi | CV | 4 | BLE | Linear | 100W | 60V | 4,088 mA | 4,100 mA |
Programmable Feature Chart
The following features are enabled using Arkalumen’s APT Programmer
| APT Controller | Control Protocol | Retrieve Settings | Dim-to-Warm | Dim-to-Off | Fade-to-Off | Set Max Current | CCT Ranges | CCT Mapping | Intensity Mapping |
| APT-CV2-VA-LN-CVO | DMX/RDM | ||||||||
| APT-CV2-VC-LN-CVO | 0-10V | * | |||||||
| APT-CV2-VWC-LN-CVO Casambi | BLE | ||||||||
| APT-CV2-VWS-LN-CVO Silvair | BLE | ||||||||
| APT-CV4-VA-LN-CVO | DMX/RDM | ||||||||
| APT-CV4-VWC-LN-CVO Casambi | BLE |
*Use of Dim-to-Off driver acceptable

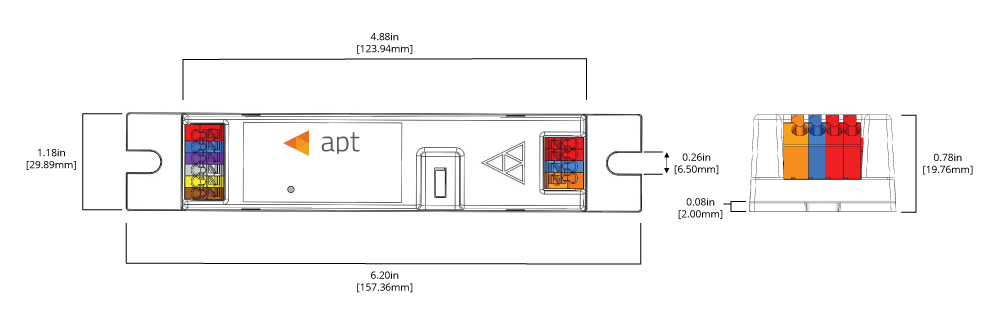

Mechanical Diagram
APT-CV2-Vx-LN-CVO
APT-CV4-Vx-LN-CVO
