ARKALUMEN APT-DW
Key Product Features
Enables Dim-to-Warm feature in constant current drivers
No auxiliary power required
Independent of dim method used
No perceivable flicker
Logarithmic, linear or customized CCT curves
Ultra-smooth Dim-to-Warm
APT-DW controllers are drop-in ready with simple wiring and ultra-smooth software enabled CCT shift during dimming. The patented controller measures the input current and shifts the current to the warmer channel as the input current is reduced.
Product Information
System Architecture
No programming required
No user interface
Optimal use with BOLD LED modules
Product Specs
2 channels
100W Max Output
12-60V
Key Markets
Architectural
Residential
Product Chart
| APT Controller | Input Driver | # of Output Channels | Control Protocol | Form Factor | Max Wattage | Max Voltage | Max Current per channel | Max Current Total |
| APT-CC-VDW-R416 | CC | 2 | n/a | Wrapped | 100W | 60V | 3,200 mA | 4,100 mA |
| APT-CC-VDW-R200 | CC | 2 | n/a | Wrapped | 100W | 60V | 2,000 mA | 2,000 mA |

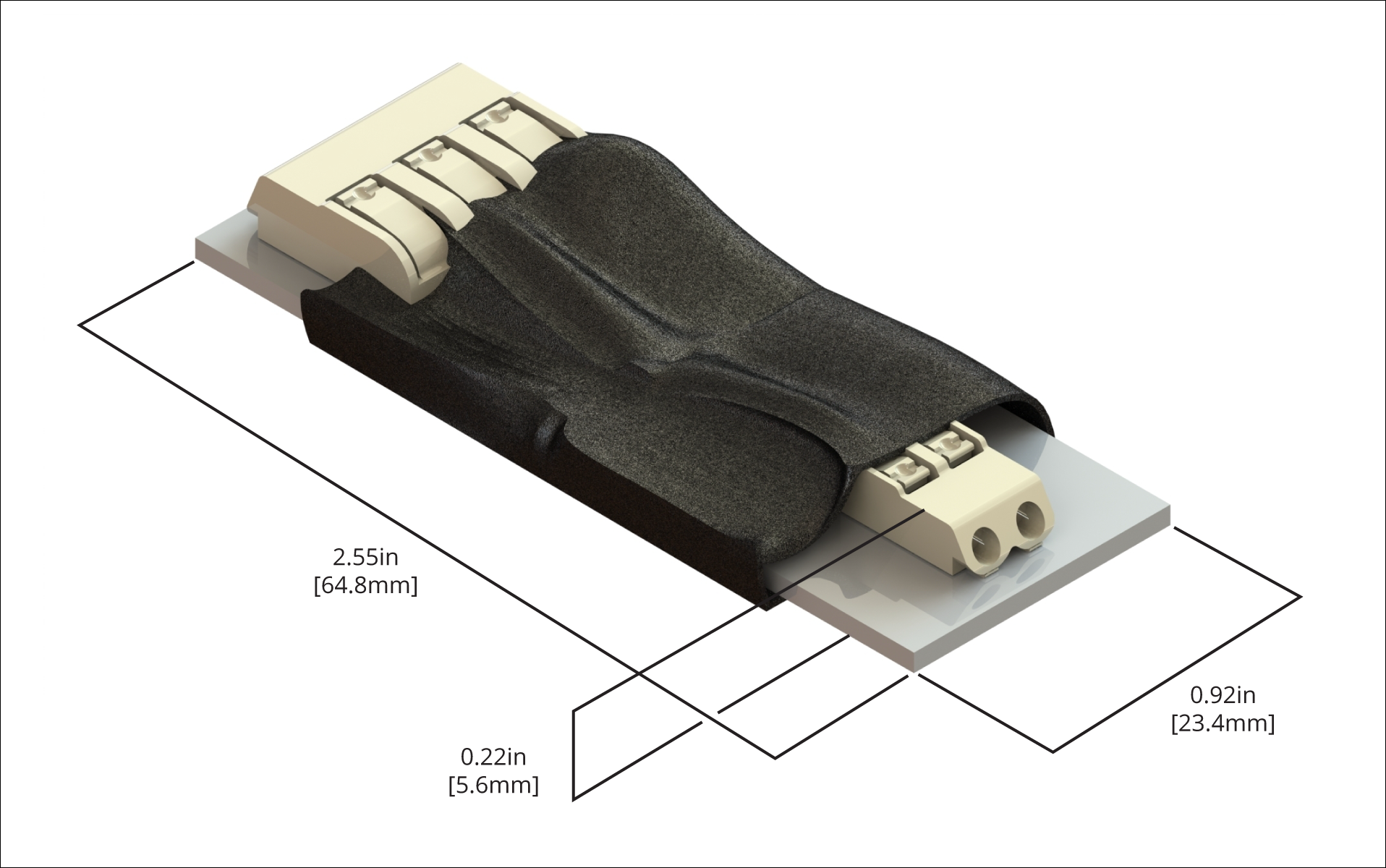

Mechanical Diagram
Resources
Mechanical Documents
Additional Resources
FAQ
Whichever dimmer works with your driver. As long as the APT-DW is receiving a current, it detects the level of the current and adjusts the color based on the current level relative to the maximum current detected.
The APT-DW does not need any control input other than the output of a dimmable constant current driver. It will use the change in current to automatically dim to the warmer LED colour.
