ARKALUMEN ORB
Key Product Features
Multi-channel constant current driver with up to 5 precisely controlled output channels
Integrated intelligent tunable spectra control features into a modular Zhaga based form factor
Select from different tunable white or tunable color arrays to achieve desired spectra mix, LES source size, and lumen output
Compatible with a wide selection of TIR optics and reflectors and easy integration with Arkalumen series of diffuser elements

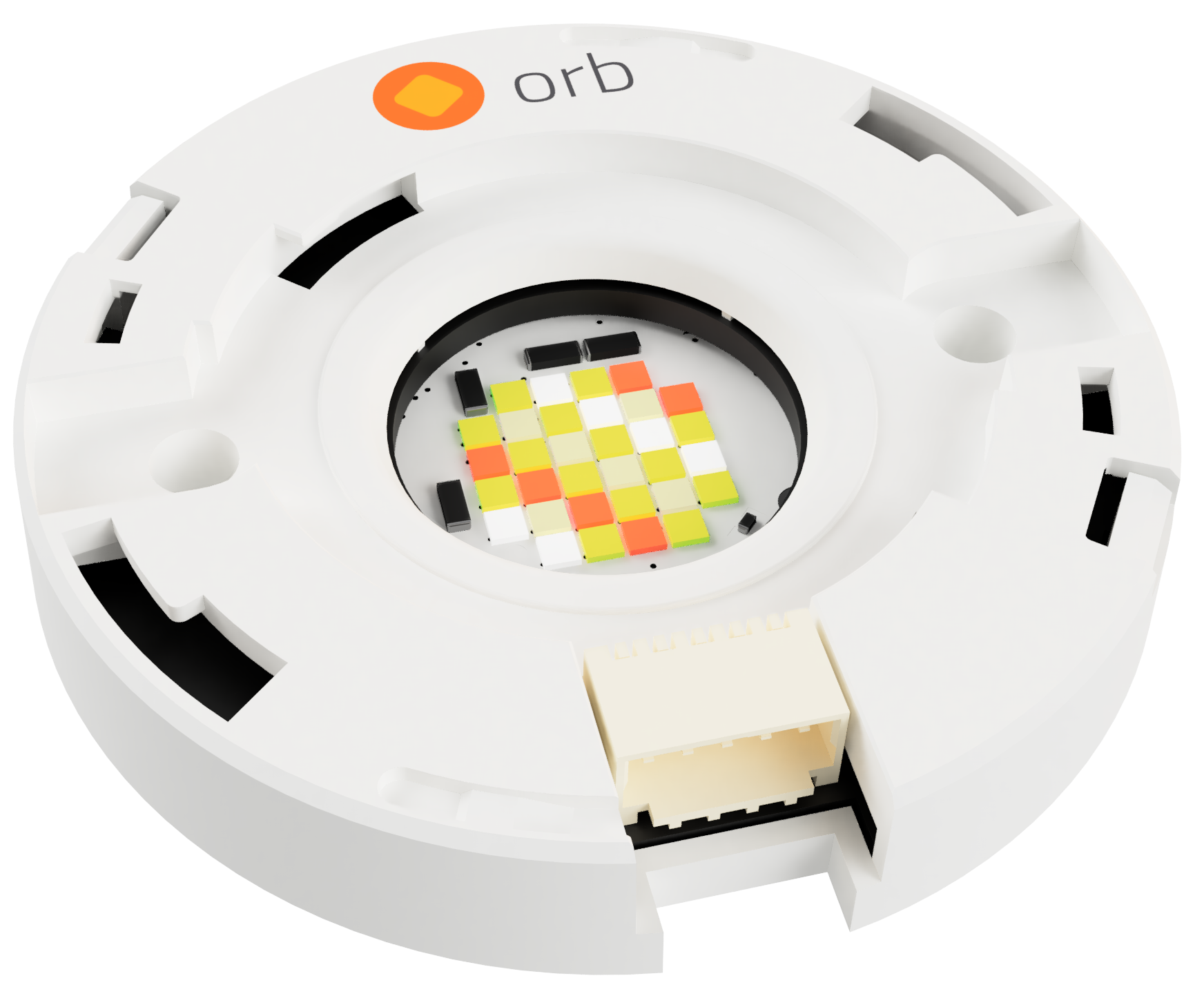

The ORB family of LED drivers are the first products of their kind to integrate intelligent tunable spectra control features into an incredibly modular Zhaga based form factor, 50mm in diameter, 8mm high. Each ORB is a multi-channel constant current driver with up to 5 precisely controlled output channels, a holder for one of many different tunable white or tunable color LED arrays, and a platform for mounting various TIR optics and reflectors.
Product Information
Control Protocol

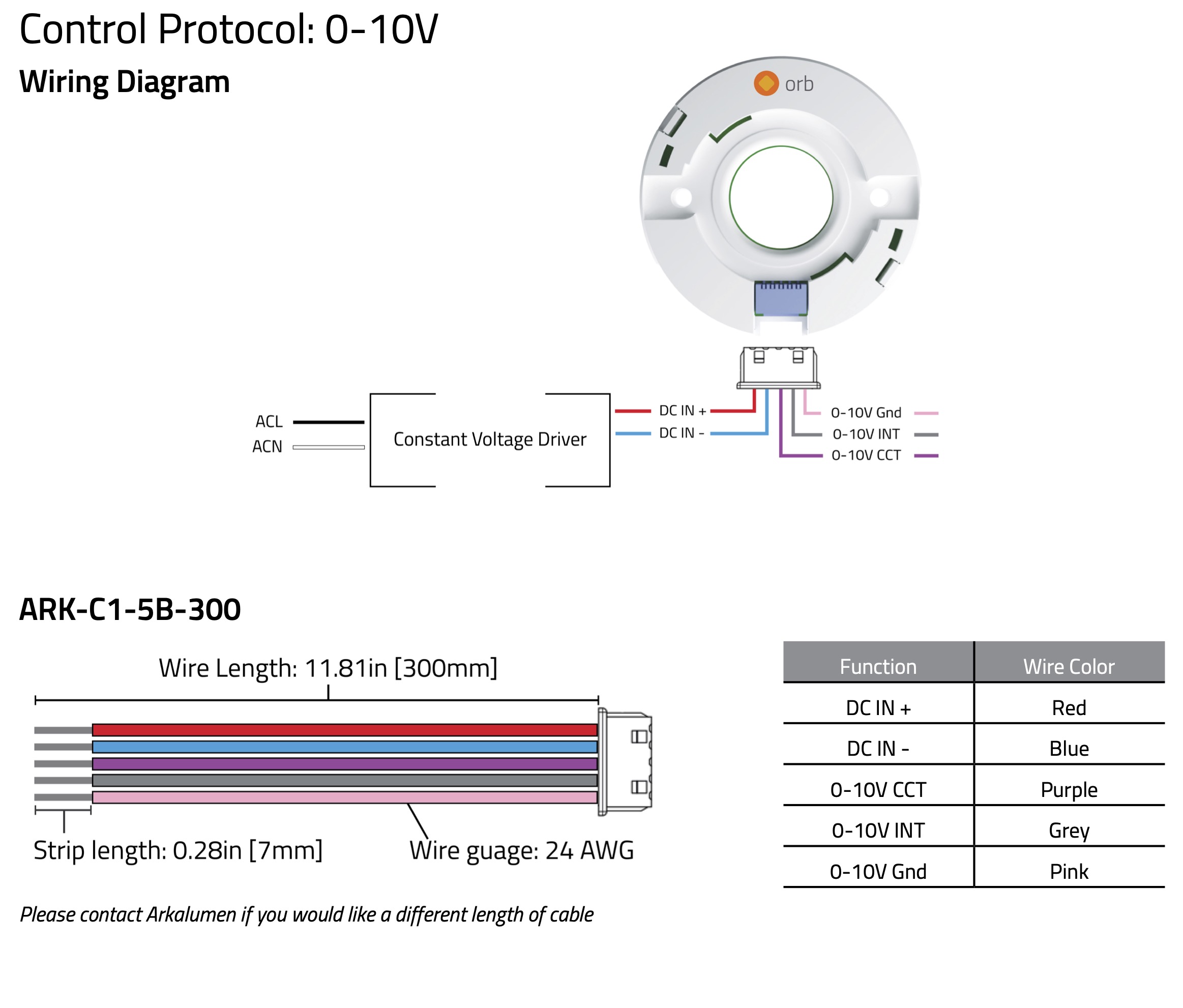

0-10V

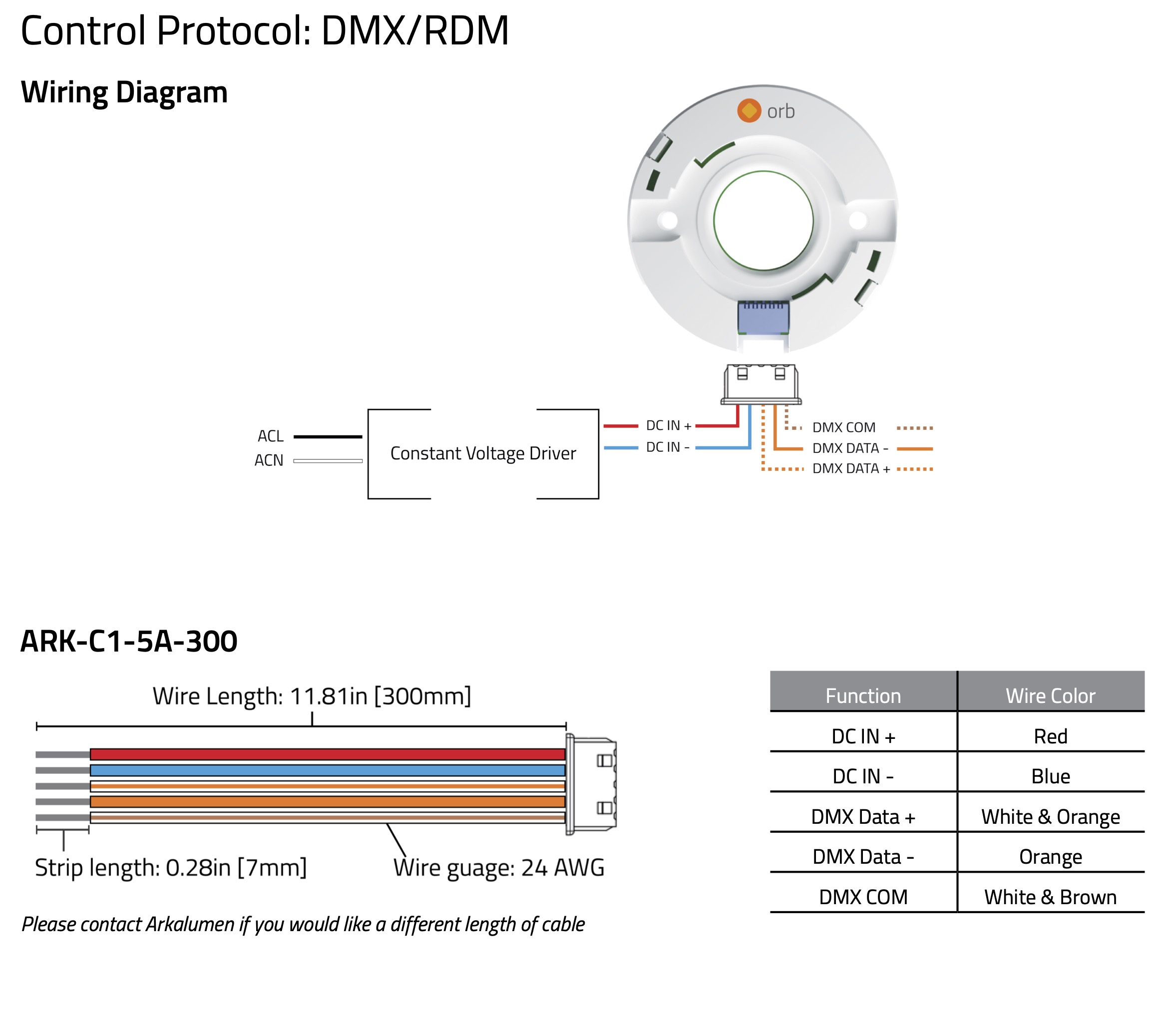

DMX/RDM

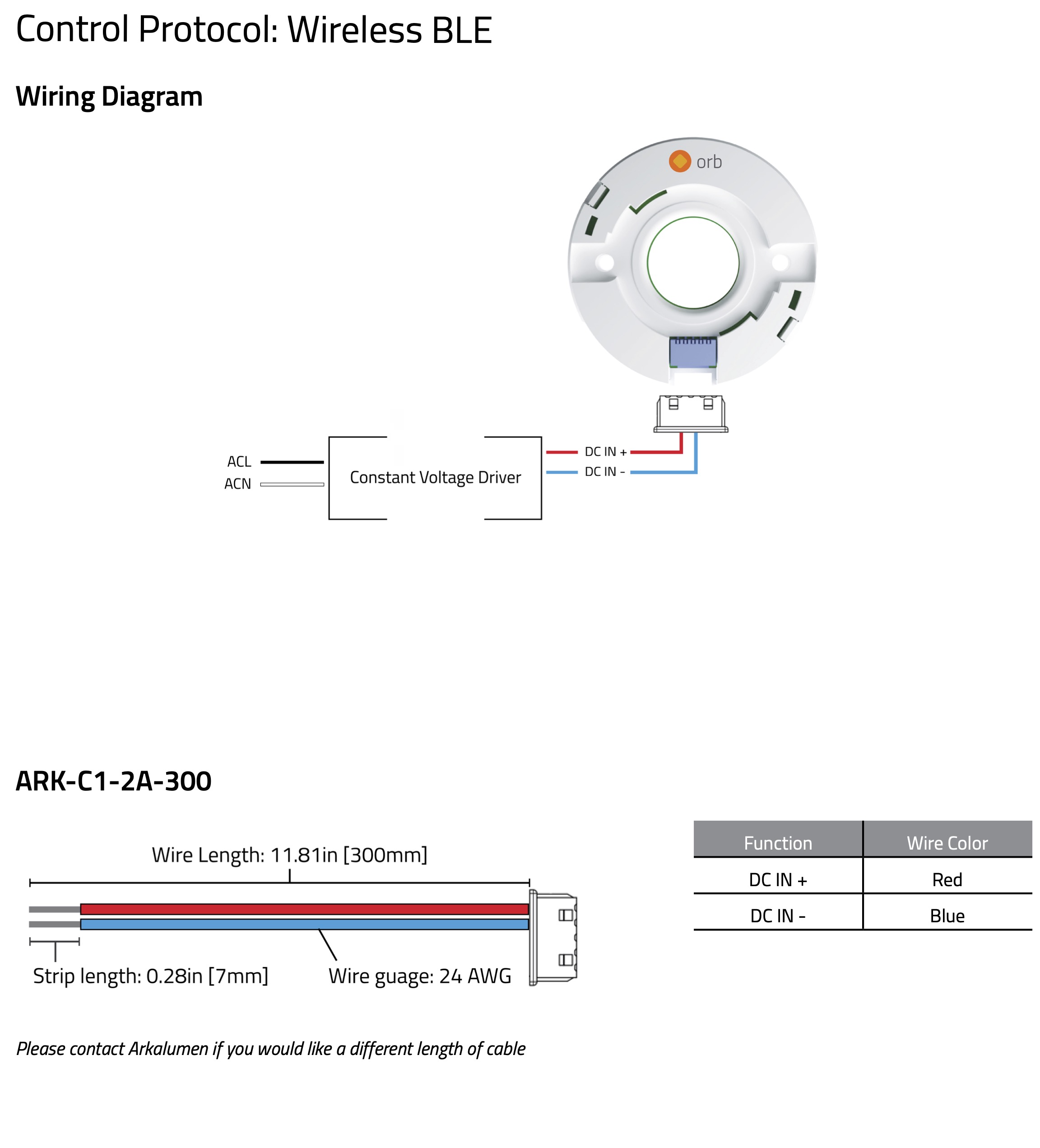

Casambi BLE
Silvair BLE
Form Factor
Zhaga Standard Dimensions
50mm diameter
8mm height
Product Specs
Up to 5 output channels
BLE built-in wireless
Key Markets
Downlights
Spotlights
Landscape
Product Chart
| ORB Controller | Input Driver | # of Output Channels | Control Protocol | Technology | Max Wattage* | Max Input Voltage | Max Channel Current | Max Total Current |
| ORB3-VA | CV | 3 | DMX/RDM | Tunable White | 48W | 24V | 1,000 mA | 2000 mA |
| ORB3-VD | CV | 3 | 0-10V | Tunable White | 48W | 24V | 1,000 mA | 2000 mA |
| ORB3-VWC | CV | 3 | Casambi BLE | Tunable White | 48W | 24V | 1,000 mA | 2000 mA |
| ORB3-VWS | CV | 3 | Silvair BLE | Tunable White | 48W | 24V | 1,000 mA | 2000 mA |
| ORB5-VA | CV | 5 | DMX/RDM | Tunable Color | 48W | 24V | CH1, CH2, CH3 500mA
CH4, CH5 1000mA |
2000 mA |
| ORB5-VWC | CV | 5 | Casambi BLE | Tunable Color | 48W | 24V | CH1, CH2, CH3 500mA
CH4, CH5 1000mA |
2000 mA |
*Note: Max Wattage is typically limited to the LED module populated in ORB
Programmable Feature Chart
The following features are enabled using Arkalumen’s APT Programmer
| ORB Controller | Control Protocol | LoDA Selection |
DMX Personality |
DMX Base Address |
DMX Error Rejection Level |
Max Total Current |
Retrieve Configurations |
Turn off Transition |
CCT Mapping Table |
INT Mapping Table |
| ORB3-VA | DMX/RDM | |||||||||
| ORB3-VD | 0-10V | |||||||||
| ORB3-VWC | Casambi BLE | |||||||||
| ORB3-VWS | Silvair BLE | |||||||||
| ORB5-VA | DMX/RDM |
|
|
|
||||||
| ORB5-VWC | Casambi BLE |
|

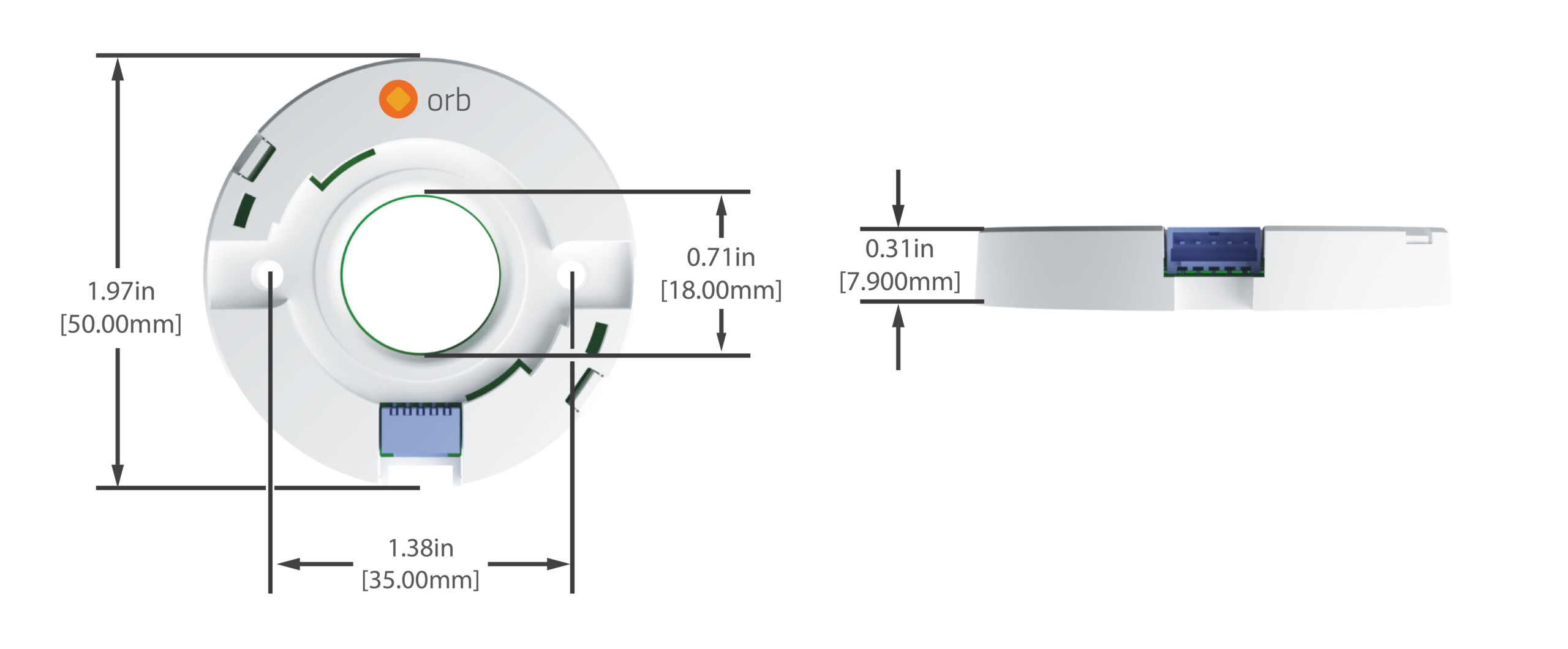

Mechanical Diagram
Lighting designers and fixture developers gain enormous design flexibility from the ORB’s modular architecture. They can choose either the tunable color 5-channel ORB5 or the tunable white 3-channel ORB3 and decide which control protocol works for their application. Designers can further select the LED array to achieve the desired spectra mix, LES source size, and lumen output and simply insert it. Auto calibration within the ORB simplifies their programming, though all ORBs can also be customized using a programmer to change intensity levels, CCT mappings, or dim curves.
Resources
Reference Design Sheets
Tunable Color – RGBWW
Reference Design Sheets
Tunable Color – RGBW
Reference Design Sheets
Tunable White – WWW
